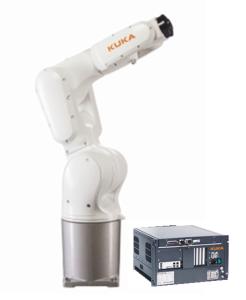

6-axis Mini-industrial Robot Arm KR6 Assembly Robot In 3C Manufacturing
The KUKA KR6 R700 is a compact, high-precision 6-axis industrial robot arm revolutionizing 3C (Computer, Communication, Consumer Electronics) manufacturing. With its agile movement, ±0.03mm repeatability, and space-saving design, the KR6 excels in PCB assembly, smartphone testing, and micro-component handling.
1. Why KR6 is Ideal for 3C Manufacturing?
A. Key Specifications
- Payload: 6 kg
- Reach: 700 mm
- Repeatability: ±0.03 mm
- Weight: 26 kg (ultra-light for easy deployment)
- Protection Class: IP54 (resists dust & minor liquid splashes)
B. Unique Advantages for 3C Industry
✔ High-Speed Precision – Handles SMT components, connectors, and screws with sub-millimeter accuracy.
✔ Compact Footprint – Fits into crowded production lines without disrupting workflow.
✔ Flexible Mounting – Can be ceiling-, wall-, or table-mounted for space optimization.
✔ Easy Integration – Compatible with KRC4 & KRC5 controllers, vision systems, and IoT platforms.
2. Top 5 Applications in 3C Manufacturing
1. PCB Assembly & Testing
- Automated soldering, component placement, and AOI (Automated Optical Inspection).
- Case Study: A Shenzhen electronics plant reduced defect rates by 40% using KR6 for micro-soldering.
2. Smartphone & Tablet Assembly
- Screw driving, camera module insertion, and display fitting.
- Force-sensitive assembly prevents damage to fragile parts.
3. Wearable Device Production
- Precision handling of tiny sensors, batteries, and casings.
- Collaborative (Cobot) mode allows safe human-robot interaction.
4. Consumer Electronics Packaging
- High-speed picking & placing of earphones, chargers, and small gadgets.
- Barcode scanning & labeling integration.
5. Laser Engraving & Marking
- QR code engraving on metal/plastic parts with 0.01mm precision.
3. How to Integrate KR6 into Your 3C Production Line?
Step 1: Select the Right Configuration
- Choose grippers: Vacuum (for flat components), 2-finger (for screws), or magnetic (for metal parts).
- Add vision guidance (e.g., Cognex cameras) for unstructured picking.
Step 2: Programming & Simulation
- Use KUKA.WorkVisual for path optimization.
- Simulate workflows in KUKA.Sim to avoid collisions.
Step 3: Connect to Factory Systems
- MES (Manufacturing Execution System) for real-time production tracking.
- PLC coordination (e.g., Siemens, Mitsubishi) for synchronized conveyor belts.
Advantage:
| Service | We supply 3d model, foundation and flange dimensions of related robot. Supply training video to fresh customer. The video include of how to mastering,how to connect the cable,how to programming and so on. If you have any problem, call us anytime or sent email to us. |
| Robot Maintains | The robot we suggest maintains every one year or 10000 hours. the main job is exchange oil, fans,UPS and so on. If the robot working in terrible environment, just like low temperature or wet environment. So such case we suggest half year or 5000 hours to do maintains. |
| Warranty | 1 Year |
Place of origin: China
Brand Name: KUKA
Model Number: KR 6 R900-2
| Type: KUKA KR 6 R900-2 | Reted Payload: 6.7kg |
| Reach: 901mm | Repeatability: 0.02mm |
| Axis: 6 | Weight: Approx. 27 kg |
| Mounting Position: Floor,Celling, wall | Protection Rating: IP65 |
| Footprint: 208mm X 208mm | Controller: KRC4 |
| Item | value |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, MachineryRepair Shops, Manufacturing Plant, Food & Beverage FactoryFarms, Restaurant, Home Use, Retail, Food Shop, PrintingShops, Construction works , Energy & Mining, Food &Beveraqe Shops, Other, Advertising Company |
| After Warranty Service | Video technical support, Online support |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product 2019 |
| Warranty of core components | 1 Year |
| Core Components | PLC |
| Condition | New |
| Place of Origin | Germany |
| Warranty | 1 Year |
| Service mode | Online support |
| Type | KUKA KR 6 R900-2 |
| Rated payload | 6.7 kg |
| Reach | 901mm |
| Repeatability | 0.02mm |
| Axis | 6 |
| Weight | Approx. 55kg |
| Mounting position | Floor,Celling, wall |
| Protection rating | IP65 |
| Footprint | 208mm X 208mm |
| Controller | KRC4 |
FAQ:
*Q:Why are we?
A:Our company works robot industry over fifteen years. Programming robot inclusive KUKA ,ABB,YASKAWA,FANUC,ESTUN(Chinese ROBOT ),EFORT(Chinese robot). the business involved simulation,programming,service after warranty period.
*Q:How about our service concept?
A:We keep on phone open all day. Stand in customer view to provide rationalization solution and robot selection.
*Q:What products can we offer?
A:robot, energy supply for robot, linear for robot. Training for robot. Gripper for handling.
*Q:Why you purchase from us?
A:You don’t worry about after-sales problem to cooperation with us.
About us
Companies in the "customer first, quality first, the user first" purpose, we will as always Warm and sincere service for all users, friends and customers, create brilliant tomorrow. Our main customers are Baosteel, INO,Volkswagen,Geely and so on. Over fifteen years experience in the robot industry. Our engineers can design solution,simulation,program and troubleshooting. So if you have any issue of robot. Call us any time. We will try our best to solve the problem. The other advantage is after-sales service,we have robot spare parts in stockroom. We can response promptly to help you resolve robot fault. We also have robot training. The course include programming, electric, mechanic and expert programming. So welcome to join our college.
